Data Transmission
Interfaces
The modules on this page can be used with the following devices:
P-OX100, P-OX100L, PEARL100, PEARL100L, VITRO and CAP10.
The measured values are transmitted online (e.g. during measurement).
For limitations of a particular device, please see the detailed description below.
Nurse·Net Interface
This interface connects all devices except for the CAP10 to a nurse-call system. The adapter box contains a relay with a SPDT (single pole, double throw) contact. Connection is done using a Mini-DIN connector.
Order Information
| Delivery | Order Number |
|
Nurse Call Adapter for: P-OX100L, PEARL100L, P-OX100, PEARL100, VITRO |
01960 |
Analog Interface

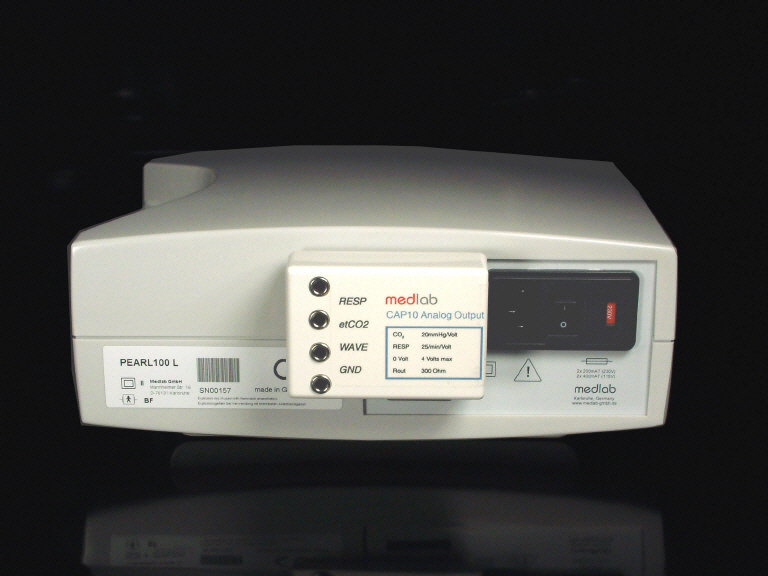

This interface module is an isolated three channel analog output. The recorder is connected with 4 mm banana plugs.
The following channels are available:
| Device | Outputs |
| P-OX100L, PEARL100L | Pulse Rate, SpO2, Plethysmogram |
| P-OX100, PEARL100 | Pulse Rate, SpO2, ECG |
| VITRO | Pulse Rate, SpO2, Plethysmogram |
| CAP10 | Respiration Rate, etCO2, Capnogram |
Order Information
| Delivery | Order Number |
|
Analog output for: P-OX100, PEARL100, P-OX100L, PEARL100L, VITRO |
08050 |
|
Analog output for: CAP10 |
08060 |
