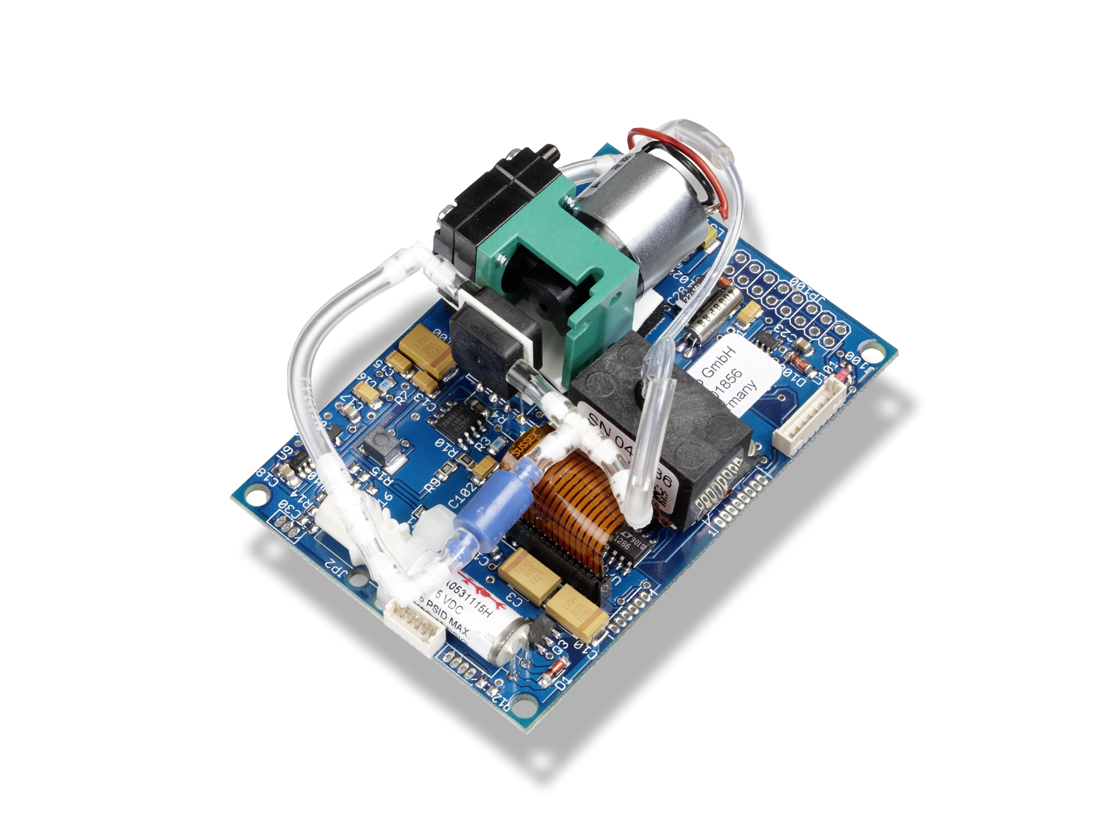

EG01200

Sidestream Module for Capnography

Size: 77 x 53mm
Power Consumption: 400mW at 5V
Sidestream Sampling
Regulation of the Sampling Rate in Three Steps
Zero Calibration integrated
Respiration Rate: 0-99 1/min
etCO2: 0-80mmHg or 0..10 %Vol
Transmission of Capnogram in 3 Transmission Speeds
Serial Interface
Simple Calibration with 5% Calibration Gas







Data Sheet

Download data sheet [136 KB] in PDF format.


Technical Manual

Download technical manual [170 KB] in PDF format (Version 1.47)


Evaluation Software

Test Software for evaluation of the EG01200 board. Visual Basic 6.0, with full source code and compiled program. Download [68 KB] and extract into one directory.


Order Information

Testkit EG001200
Order Nr: 08010

Contents:
• EG01200 OEM Board
• CO2 Absorber Cartridge
• One Sample Line, one Disc Filter, one T-Adapter
• PC / Power Cable
• Evaluation software

Optional:
Sample lines for intubated and non-intubated patients
