EG01000

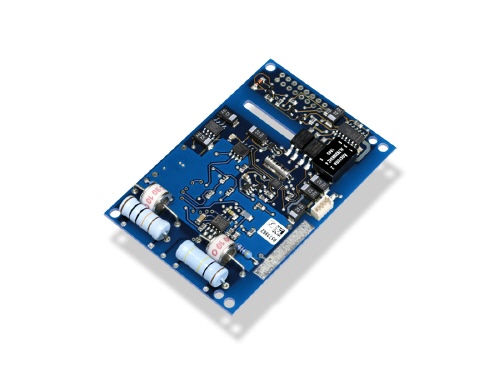

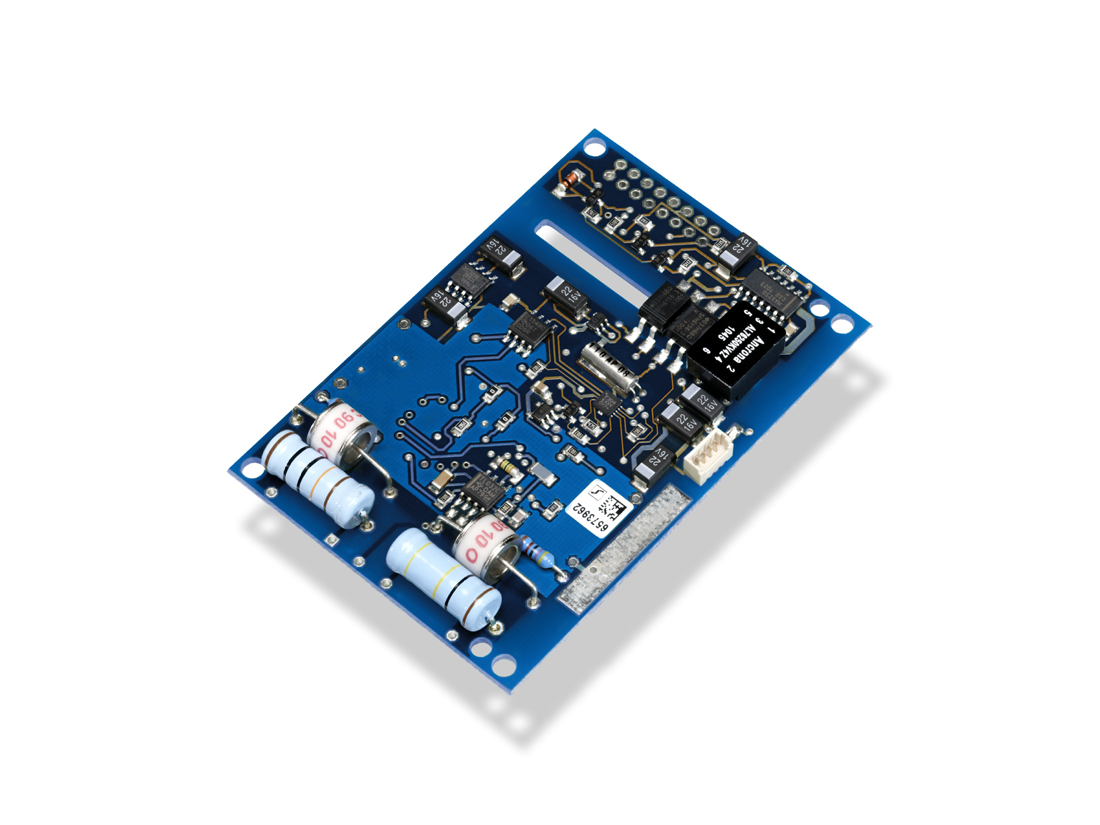

One Channel EKG Module

• Size: 77 x 53mm
• Power Consumption: 100mW at 5V (150mW max.)
• One Channel EKG
• Galvanic Isolation on Board
• Measurement Pulse: 30 - 250 bpm
• Pulse: +- 1%, +- 1 Digit
• Three Amplification Stages
• Three Curve Transmission Speeds
• "Lead-Off" Detection
• Calibration Signal (1mV)
• Optional Output of Simulated EKG Trace

Data Sheet

Download data sheet [195 KB] in PDF format.

Technical Manual

Technical Manual (V 2.2) in PDF Format [105 KB]

Evaluation Software

Test Software for evaluation of the EG01000 board. Visual Basic 6.0, with full source code and compiled program. Download [67 KB] and extract into one directory.

Test kit EG01000
Order Nr: 00702

Contents:
• EG01000 OEM Board
• 3 Lead ECG cable
• 3 Lead Lemo Amp Adapter
• PC / Power Cable
• Evaluation software
