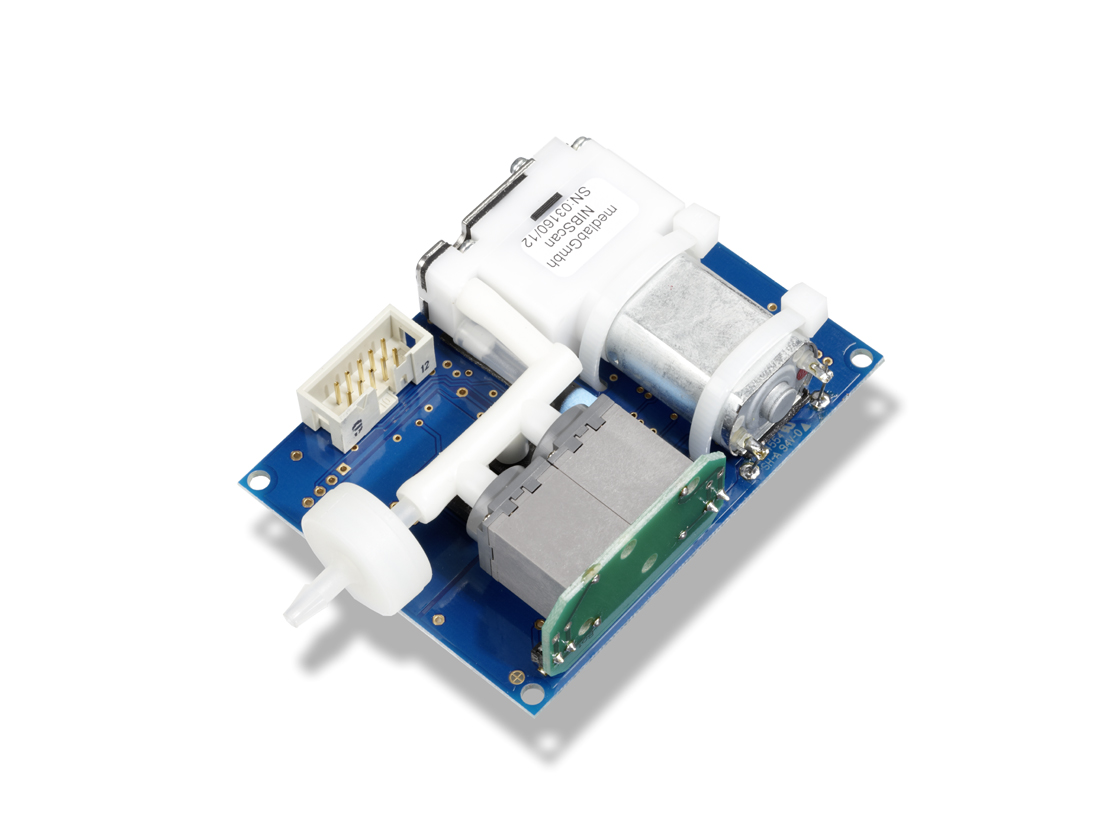

NIBScan NIBP OEM module

Non-Invasive Blood Pressure Module

• Size: 80 x 60 mm, Maximum Thickness 26 mm
• Weight: 120 g
• Power Supply: 5 - 15 Volts
• Power Consumption: 3 W Measuring, 40 mW Standby
• Oscillometric Method
• Redundant Safety Circuit
• Pulse: 30 - 230 bpm
• SYS, DIA, MAP Blood Pressure: 50 - 260 mmHg
• Serial Interface

Data Sheet

Download data sheet [225 KB] in PDF format.

Technical Manual

Download technical manual [198 KB] in PDF format.

Test Software

Test Software for evaluation of the NIBScan board. Visual Basic 6.0, with full source code and compiled program. Download [71 KB] and extract into one directory.

Module

Scope of Delivery:
Module NIBPScan

Order Number:
02050 (5-15 Volts Version)

Optional:
Hose for Cuff Connection
Blood Pressure Cuffs in Different Sizes

Test Kit

Test kit NIBScan (5 V - 15 V)
Order Nr: 02025

Contents:
• NIBScan OEM Board
• RS232 / Power Adapter
• RS232 Cable
• Hose for cuff connection
• Blood Pressure Cuff Adult, normal
• Evaluation software

Optional:
Blood Pressure Cuffs in Different Sizes
