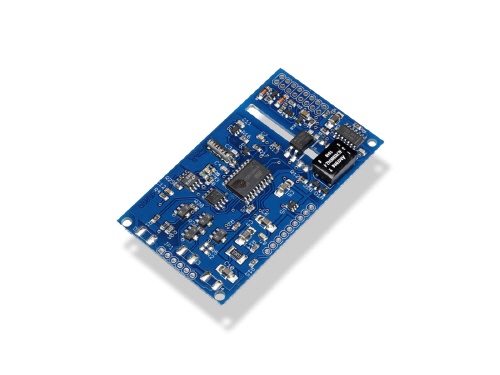

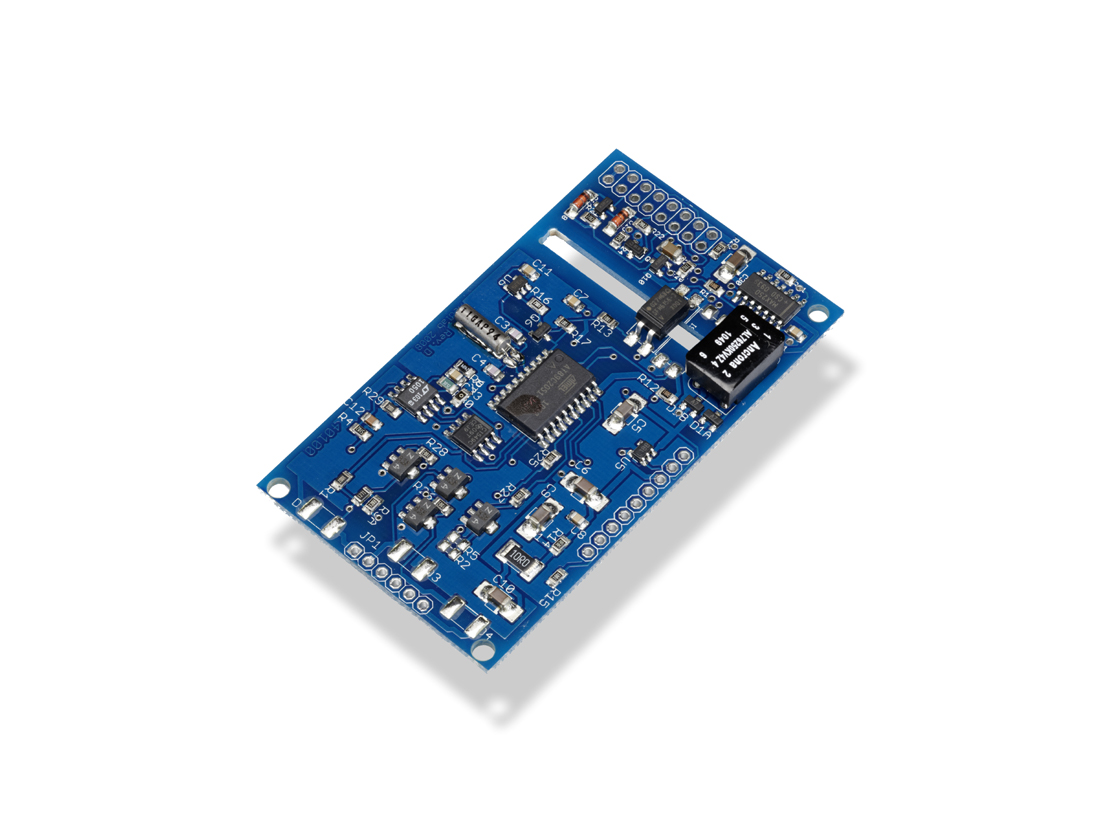

EG0700

Module for Measurement of Body Temperature
Size: 77x44mm
Power Consumption: 50mW at 5V
Galvanic Isolation "On-Board"
Two Channels
Compatible with all YSI 400 Probes
Measuring Range: 20.1°C up to 45.0°C
Resolution: 0.1°C
Accuracy: +-0.1°C + Probe Tolerance
Transmission Speed: 0.5Hz
Reference Channel with 38.8°C Output







Data Sheet

Download data sheet [112 KB] in PDF format.

Technical Manual

Download technical manual [89 KB] in PDF format.

Evaluation Software

A standard terminal program can be used for evaluation ("Hyperterminal", set to 9600 Baud, 8,N,1), since the transmission is in pure ASCII code.
We here provide also a test software for evaluation of the EG00700 board. Visual Basic 6.0, with full source code and compiled program. Download [64 KB] and extract into one directory.

Order Information

Testkit EG00700
Order Nr: 00765

Contents:
• EG00700 OEM Board
• PC / Power Cable
• Evaluation software

Optional:
YSI400 Temperature probes. Please contact us.
